VideGel

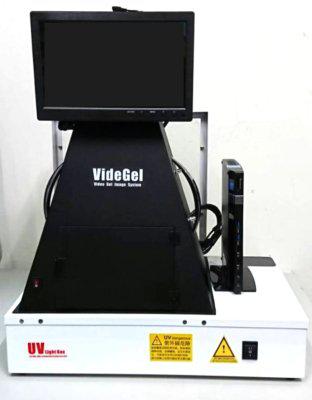

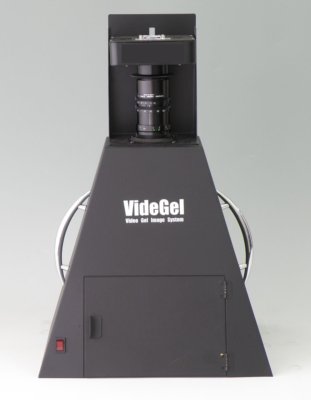

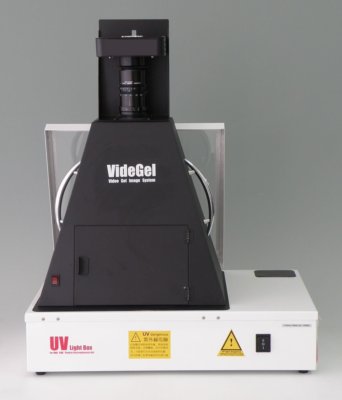

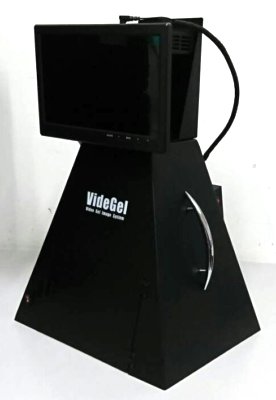

VideGel ( VGIS-4 )

Description:

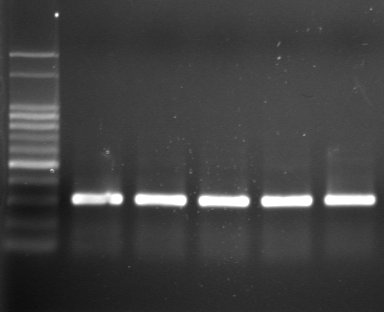

Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.




Application:

EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Realtime electrophoresis , chemiluminescence

Specification:

1. 1/2inch, grayscale,  Cool CCD -25℃( bellow ambient )
    high sensitive detecting system. sensitivity <0.01ng
2. Chip resolution :1,440,000pixels, Image resolution: 5,700,000 pixels
3. Exposure time : 0.001 second - 10 hours.
4. Quantitative depth: 16bit , grayscale = 65535.
5. Filter : Standard include EtBr filter( wavelength= 595nm ),
6. Sequence capture: automatic catch 1-10  images with different exposure
    time and auto save.

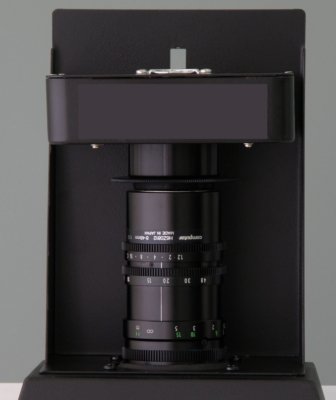

7. Zoom Lens: 8-48mm / F1.2,  ( Option: 8-48mm / F1.0 )
8. White light source: reflective, 4WX2 tubes, Option : other wavelength light
    source UVA, UVB, UVC
9. Conncet with thermal printer and printout high quality  gel image.
10. Moveable dark hook for easy transfer from UV light box to white light box


c9c816a39f2bfd5915420067ac6ad337.jpg  10f18744a93b013035a3a717ab3ea360.jpg  2a50e3347e2054ab4762f9b9ab280840.jpg  3dcd0903535d66b1fab5a96e77b1234c.jpg  fb02dbf9bdb9d6a1a1f9908ef562db94.jpg
